mm
Disc brakes front and rear
Instant stopping, even in rain or mud. The linear feedback ensures consistent control at any speed.

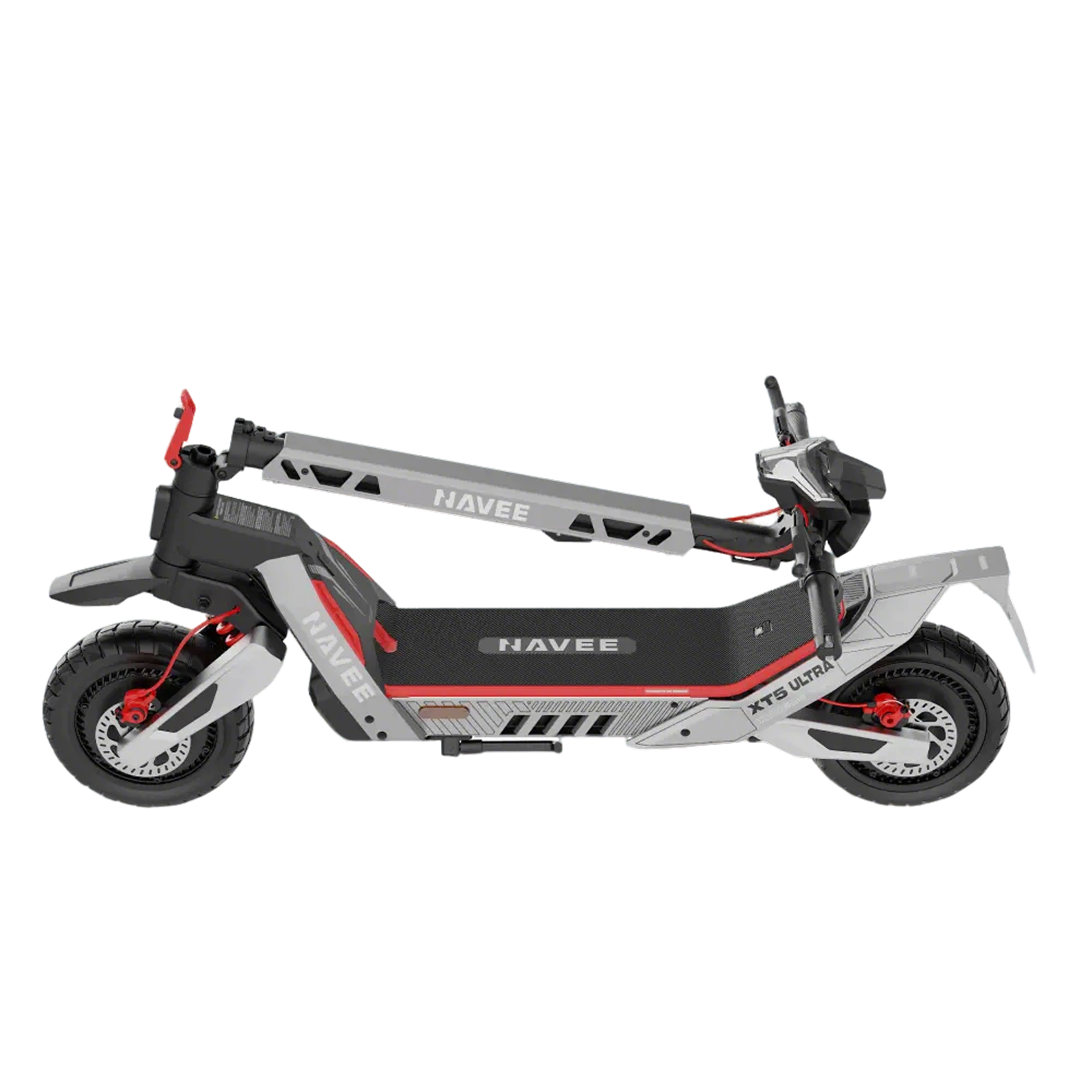

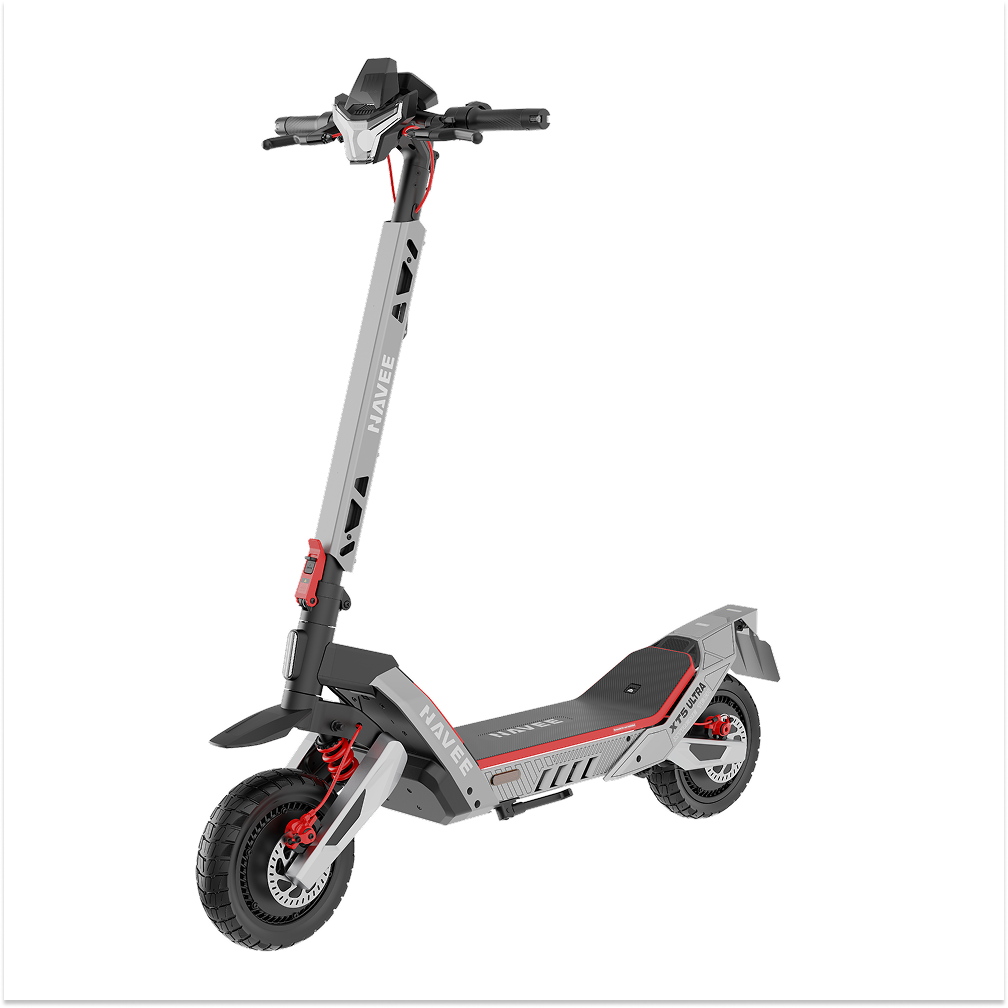

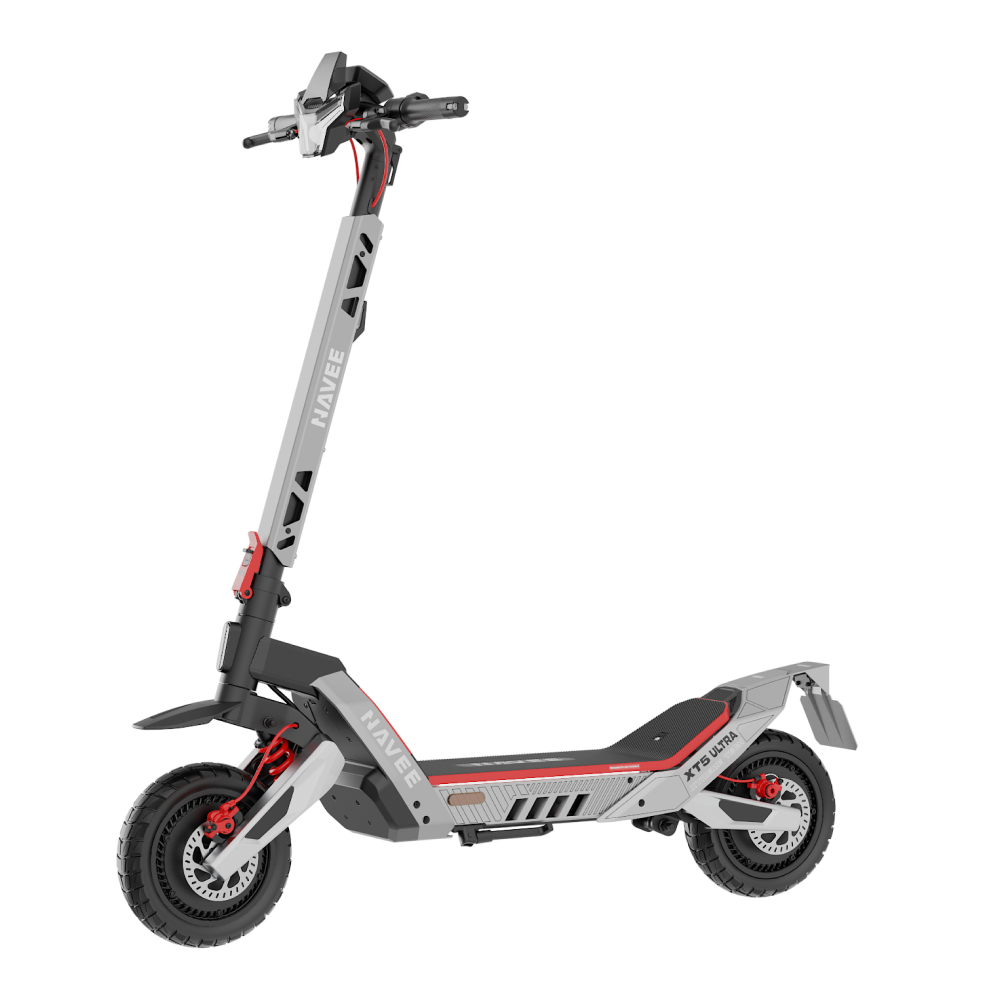

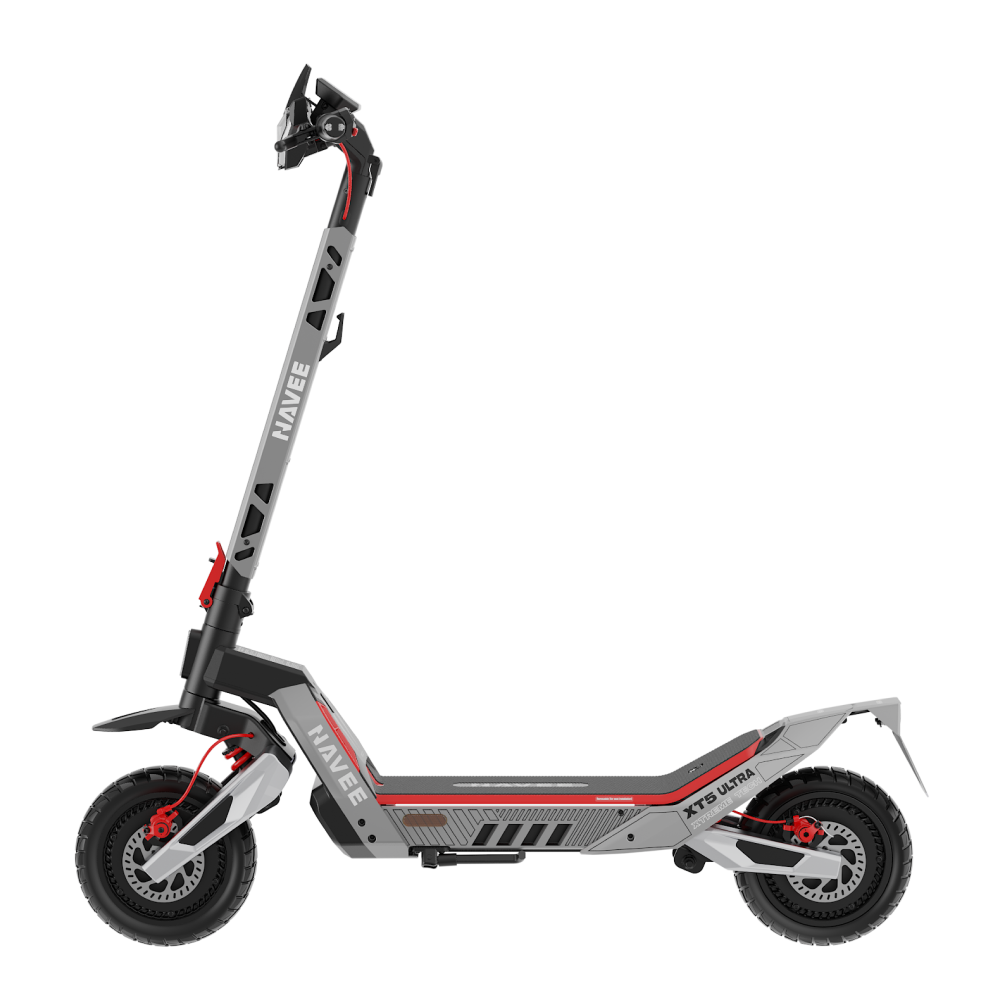

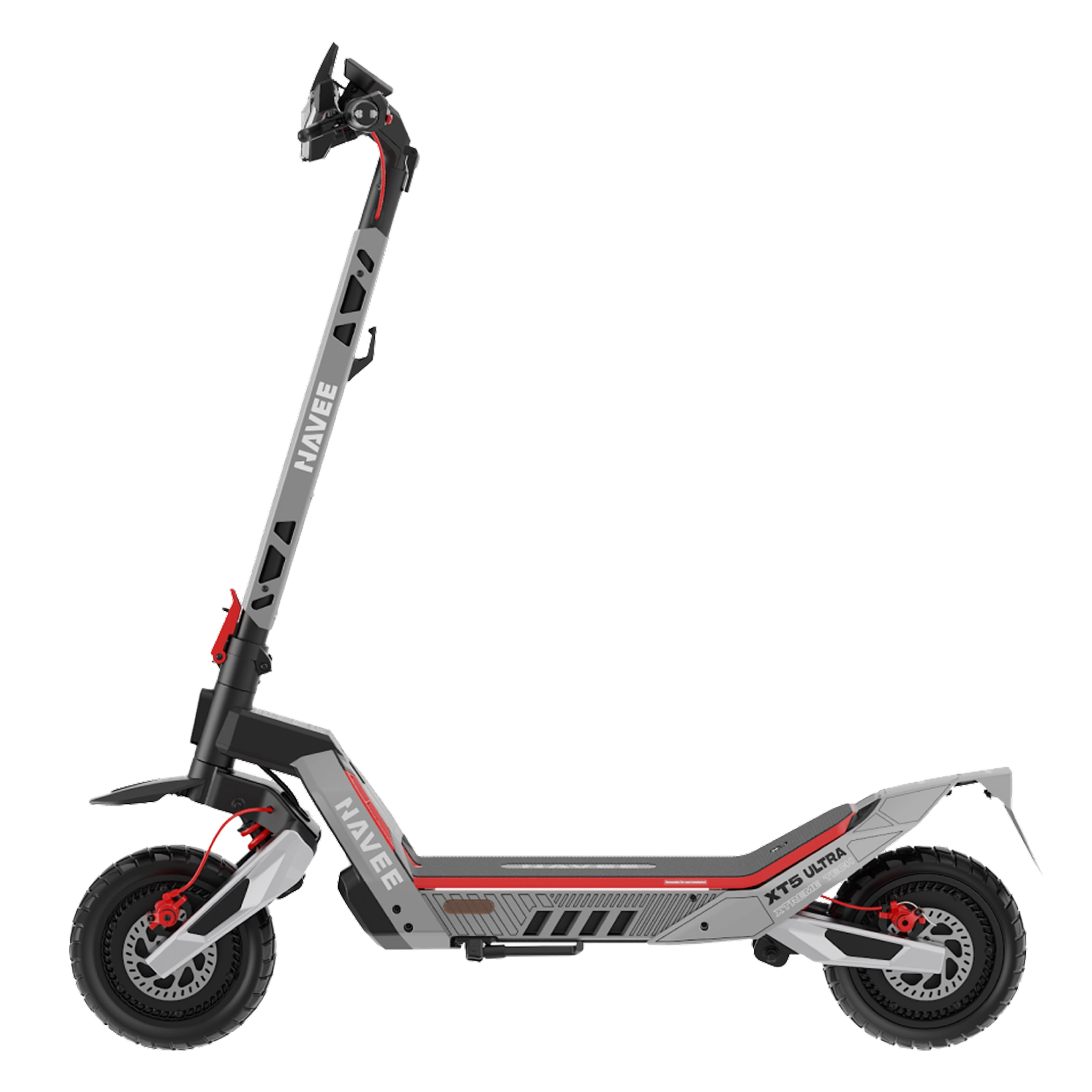

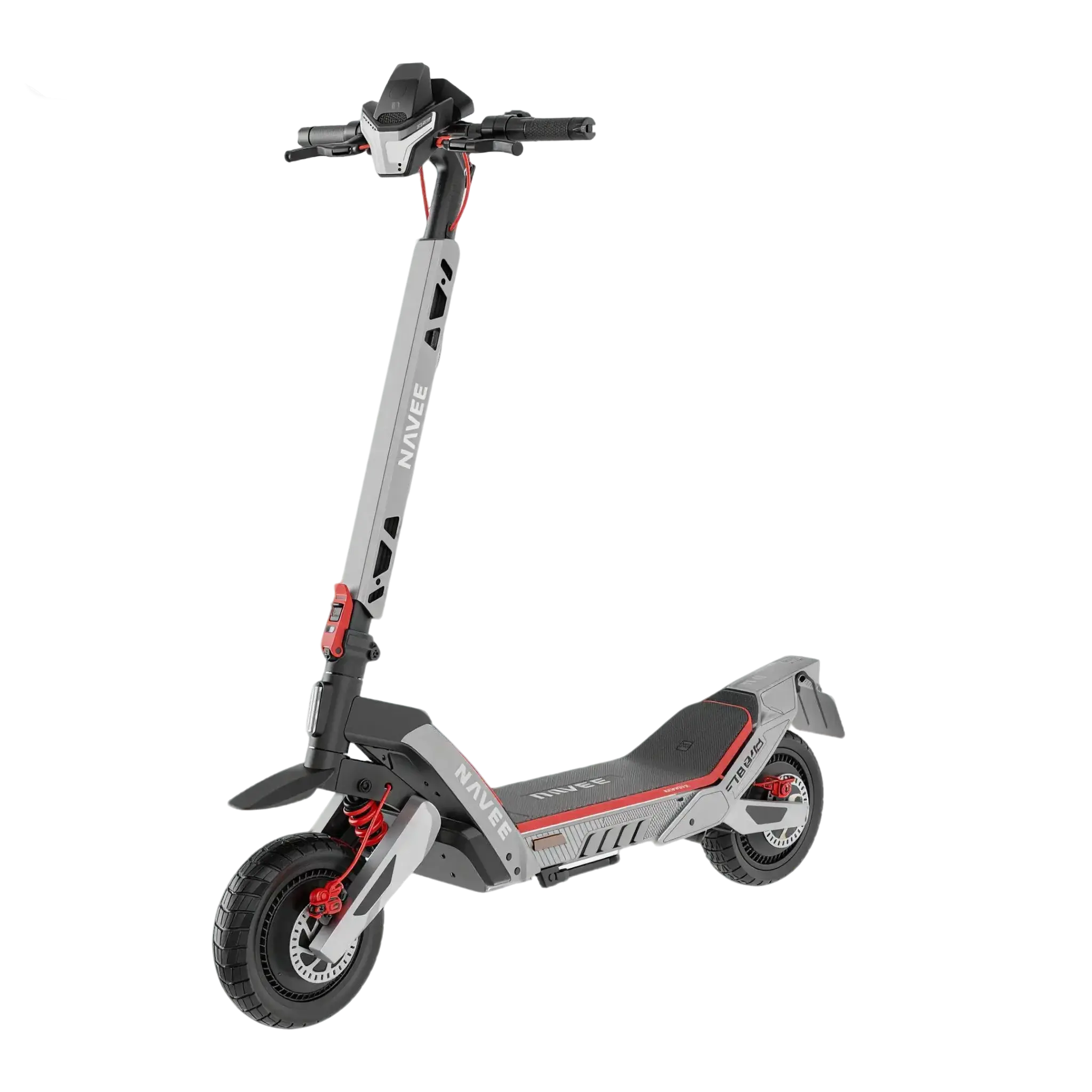

NAVEE XT5 Ultra
ESSENTIAL PACKAGE
Ready for departure.Optional accessories
Sold separatelyNAVEE XT5 Ultra
Ready for departure.
NAVEE XT5 Ultra€1.499,00
Total
€1.499,00
NAVEE XT5 Ultra
Sale price€1.499,00
Front and rear Dual-Side Damping Arm™ suspension
Triple braking system
XT5 Ultra
Max. power
%
Max. gradient
SmartRide
0
-inch
Tubeless tires
0
km
Range
0
h
Fast charging with 10A charger**

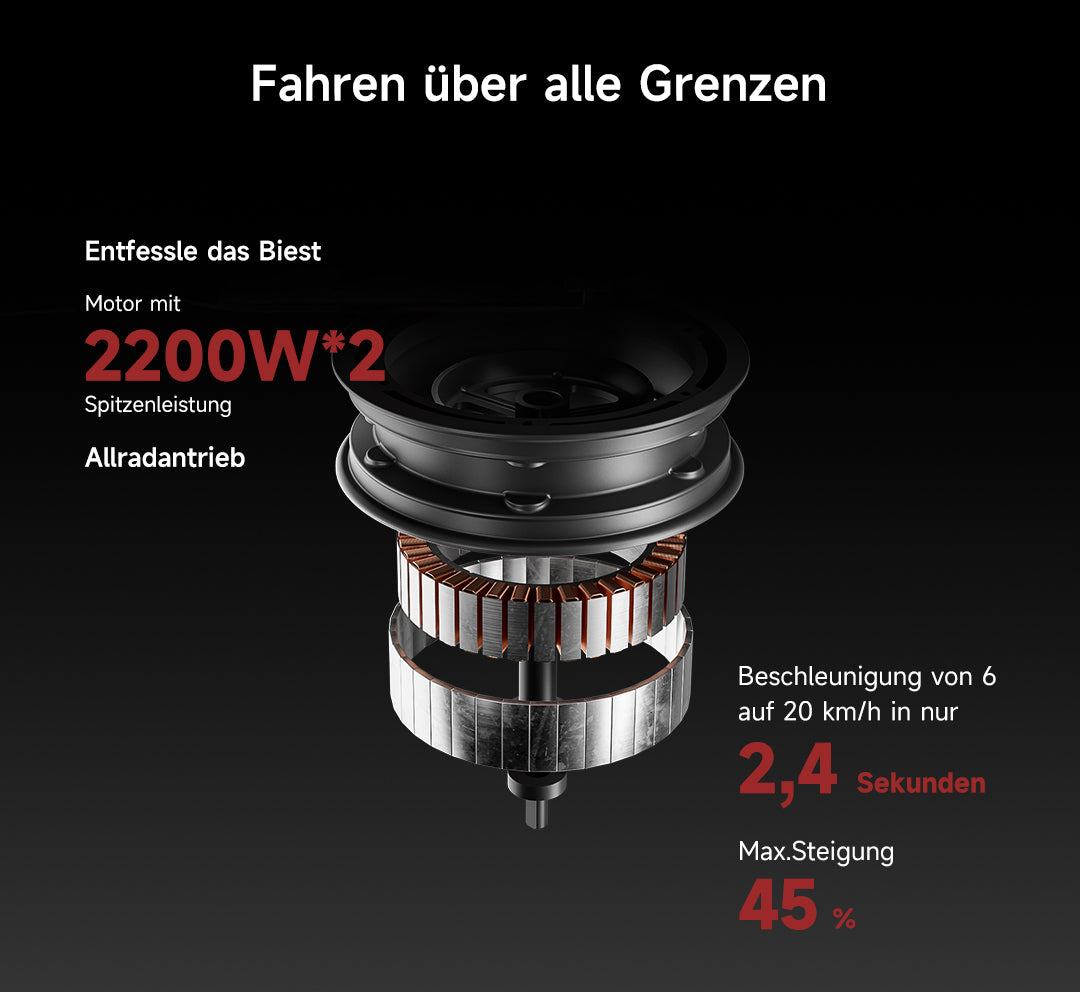

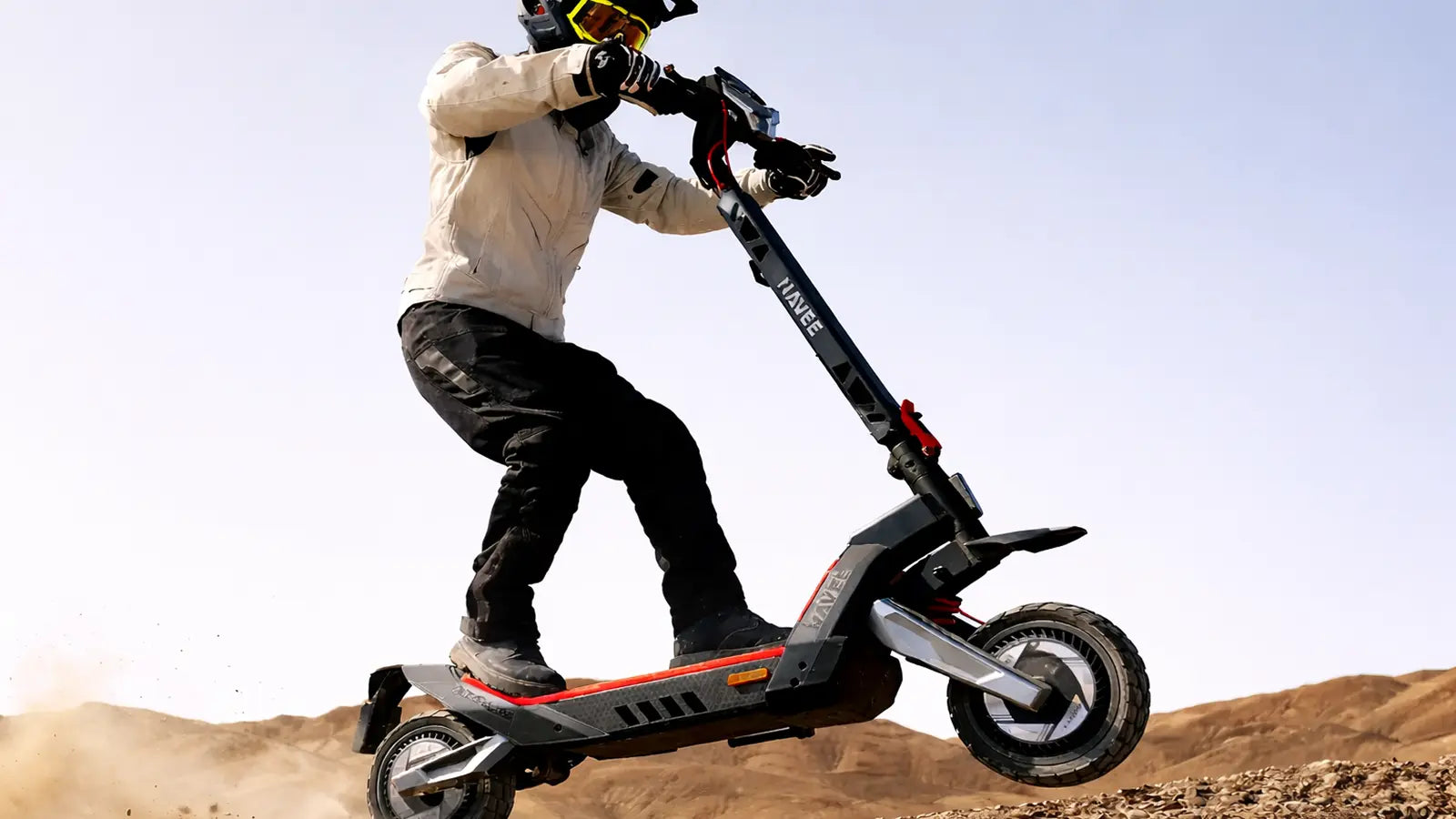

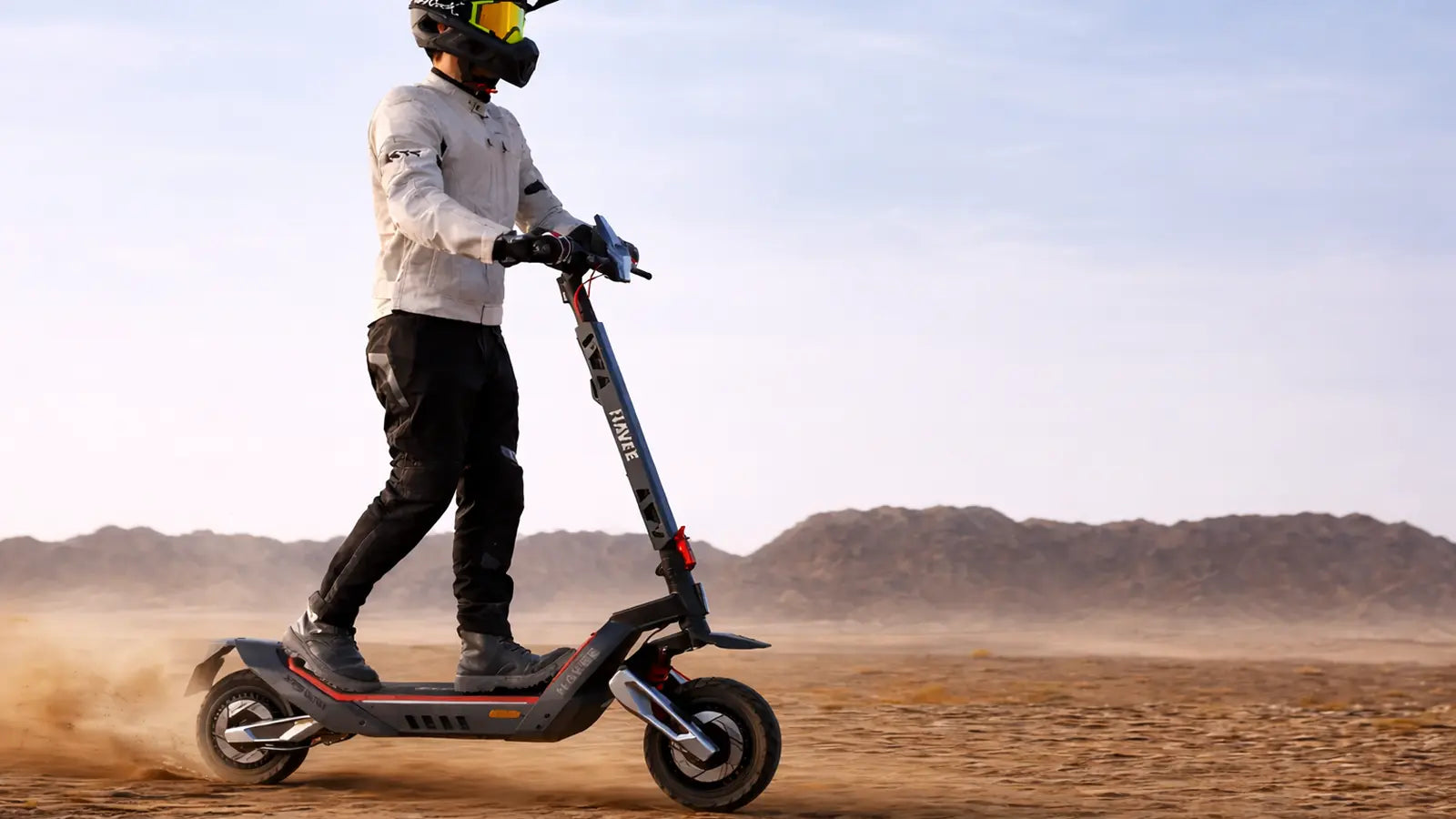

Unleash Extreme Power
Unleash the beast
Motors with maximum power
%
Max. gradient

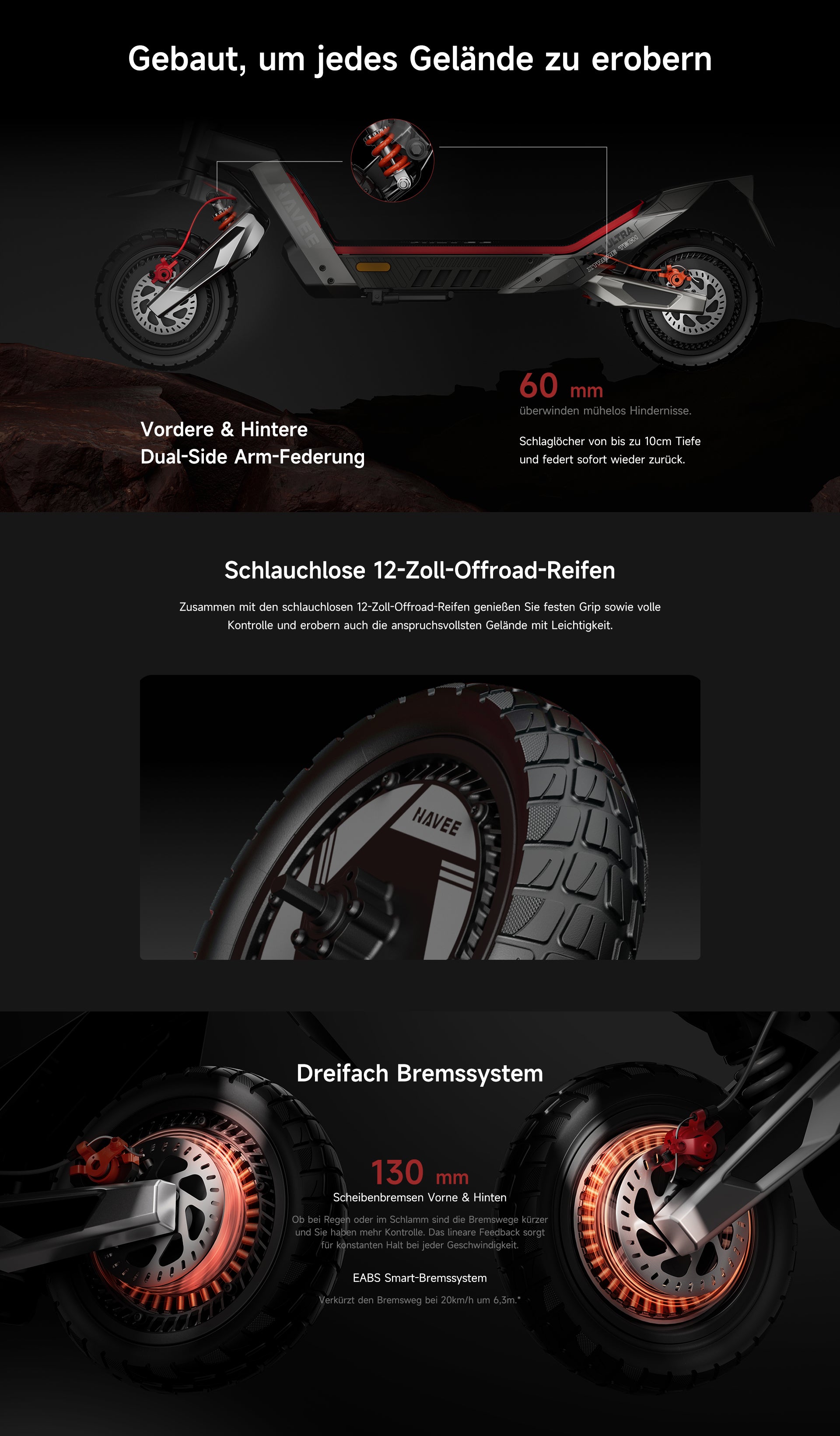

Patented Double Damping Arm Suspension
The advanced front and rear suspension with 60mm of travel ensures a smooth and comfortable ride even on uneven terrain and over deep potholes.
0
mm
Devour obstacles
Swallow 10 cm deep craters and immediately bounce back up.
12-inch Off-road Tubeless Tires
Large 12-inch tubeless tires provide excellent grip, puncture resistance, and stability on mud, gravel, sand, and rough terrain.
Large
-inch
Off-road tubeless tires
Triple Braking System
Front and rear disc brakes + EABS ensure short braking distances and safe control in all weather conditions.
Long-range Battery
Up to 90 km range on a single charge (at 15 km/h). An optional external battery extends the range to up to 136 km.
Wh
built-in battery
for battery safety
Flash Charging Technology
With the optional 10A fast charger, the battery is fully charged in just 2-3 hours – 50% faster than with standard charging.
0
10A charger
≈
0
h
4-A charger

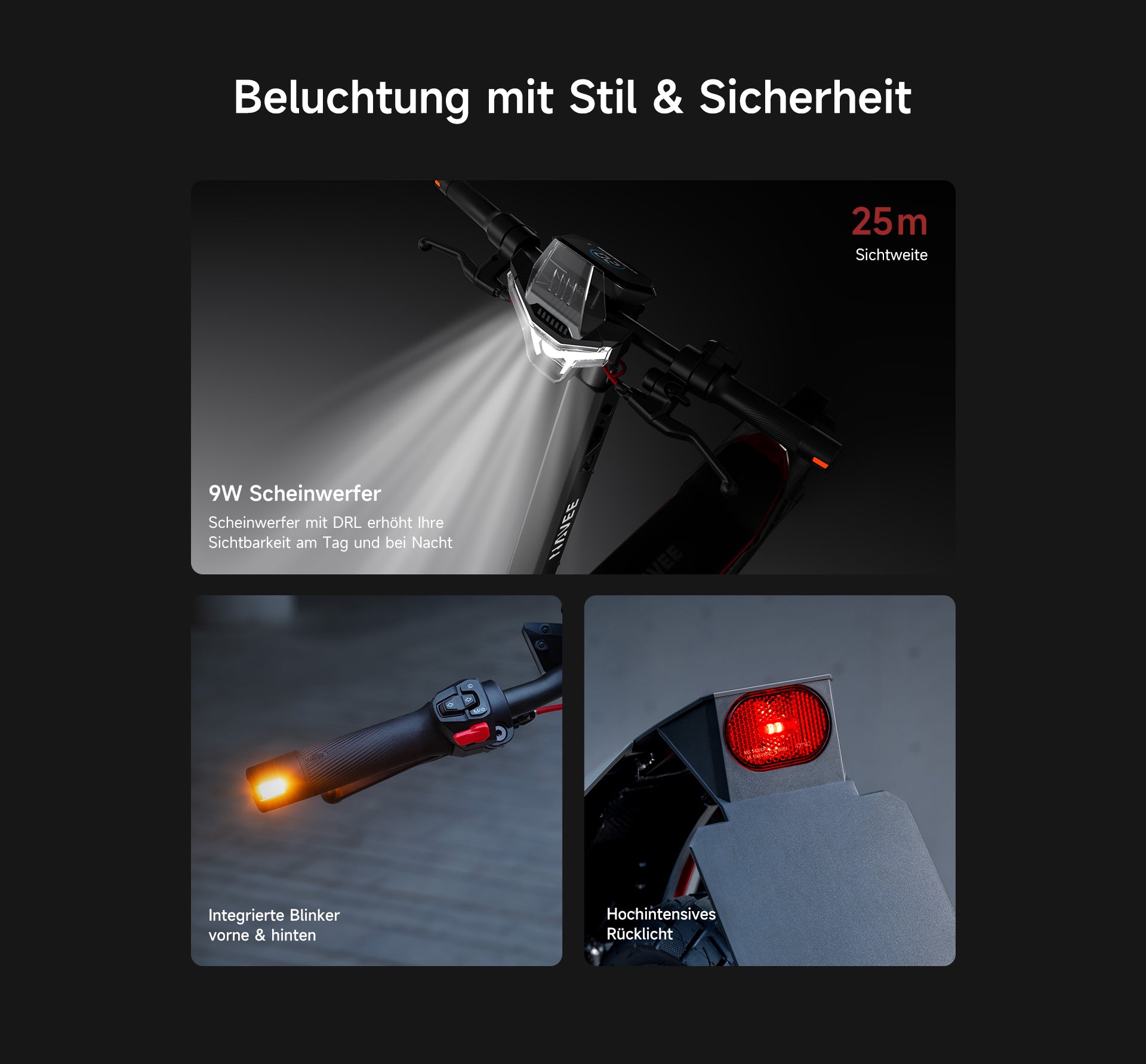

Illuminating the Way with Style and Safety
Expand Your Reach
0
km/h
Range at
0
km/h
Range at
Intelligence that Honors Nature
TCS Traction Control
for maximum stability on slippery surfaces
IPX6 Waterproof Rating
can be used without problems even in wet conditions
Apple Find My Integration
find your scooter anytime (even when switched off)
NAVEE Smart App
Real-time data, remote locking, individual settings, and more
What’s in the Box
Navee XT5 Ultra
Charger
Screws
Allen key
User Manual

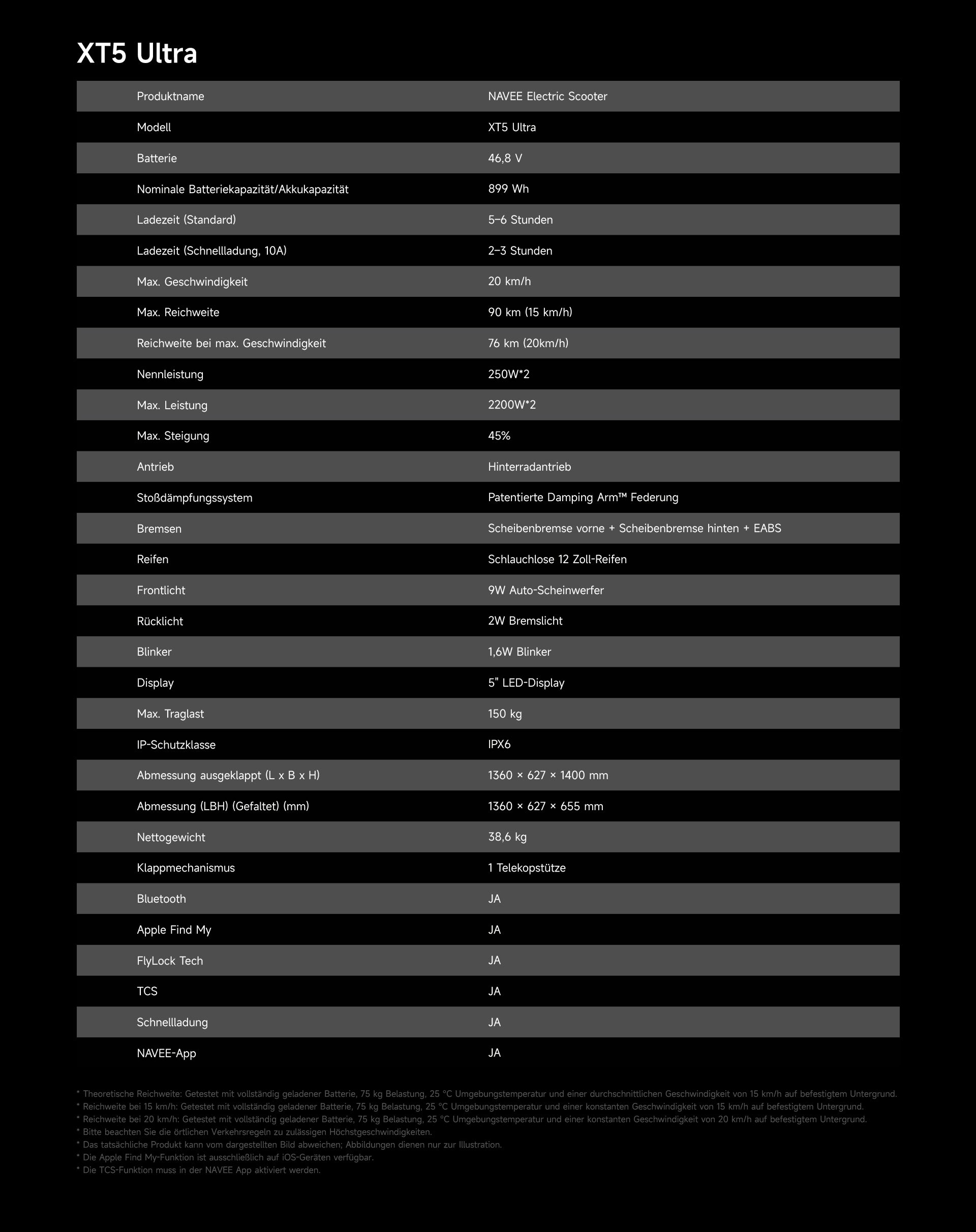

Specifications
NAVEE XT5 Ultra
NAVEE XT5 Max
GENERAL INFORMATION
Certification Model
XT5 Ultra
Max. Load Capacity
150 kg
Max. Climbing Grade
45%
Factory-set Max. Speed
6 / 15 / 22 km/h
BATTERY
Battery Voltage
46.8 V
Battery Capacity
899 Wh
Battery Cell Type
18650 (13s6p)
Cell Capacity
19.2 Ah
Battery Weight
4200 g
PERFORMANCE
Rated Power
250 W×2
Max. Power
4400 W
Range (at 15 km/h)
90 km
Range (at 22 km/h)
75.5 km
CHARGING & FUNCTIONS
Charging Time (Standard)
5–6 hours
Charging Time (Fast)
2–3 hours (with 10A charger)
Water Resistance Rating
IPX6
Bluetooth
Yes
Smart App
NAVEE App
Apple Find My
Yes (iOS)
DIMENSIONS & WEIGHT
Dimensions (Unfolded)
1360 × 627 × 1400 mm
Dimensions (Folded)
1360 × 627 × 655 mm
Deck Width
210 mm
Net Weight
38.6 kg
Gross Weight
45.6 kg
BRAKES & SUSPENSION
Brake System
Front disc brake + Rear disc brake + EABS
Suspension System
Damping Arm™ patented suspension system
LIGHTING & MISCELLANEOUS
Headlight
9W Auto-sensing
Brake Light
2W Brake Light
Turn Signals
1.6W Turning Light
Display
5" LED screen
GENERAL INFORMATION
Certification Model
XT5 Max
Max. Load Capacity
150 kg
Max. Climbing Grade
32%
Factory Max. Speed
6 / 15 / 22 km/h
BATTERY
Battery Voltage
46.8 V
Battery Capacity
899 Wh
Battery Cell Type
18650 (13s6p)
Cell Capacity
19.2 Ah
Battery Weight
4200 g
PERFORMANCE
Rated Power
500 W
Max. Power
2200 W
Range (at 15 km/h)
110 km
Range (at 22 km/h)
84 km
CHARGING & FUNCTIONS
Charging Time (Standard)
5–6 hours
Charging Time (Fast)
2–3 hours (with 10A charger)
Water Resistance Rating
IPX6
Bluetooth
Yes
Smart App
NAVEE App
Apple Find My
Yes (iOS)
DIMENSIONS & WEIGHT
Dimensions (Unfolded)
1360 × 627 × 1400 mm
Dimensions (Folded)
1360 × 627 × 655 mm
Deck Width
210 mm
Net Weight
35.6 kg
Gross Weight
42.7 kg
BRAKES & SUSPENSION
Brake System
Front disc brake + Rear disc brake + EABS
Suspension System
Damping Arm™ patented suspension system
LIGHTING & MISCELLANEOUS
Headlight
9W auto-sensing LED with daytime running light
Brake Light
2W
Turn Signals
1.6W (front & rear)
Display
5" LED display
Find Your Perfect Model
NAVEE XT5 Ultra
NAVEE ST3 PRO
NAVEE GT3 Max
NAVEE GT3 Pro
NAVEE GT3
NAVEE ST3
NAVEE N65i
NAVEE V25i Pro
NAVEE XT5 Max
NAVEE ST5 Max
NAVEE N65i Ⅱ
NAVEE Birdie 3X
NAVEE XT5 Ultra
NAVEE Birdie 3
NAVEE K100 Max
NAVEE EasyRide 20
NAVEE GT5 Max
NAVEE UT5 Max
NAVEE XT5 Max
NAVEE ST3 PRO
NAVEE GT3 Max
NAVEE GT3 Pro
NAVEE GT3
NAVEE ST3
NAVEE N65i
NAVEE V25i Pro
NAVEE XT5 Max
NAVEE ST5 Max
NAVEE N65i Ⅱ
NAVEE Birdie 3X
NAVEE XT5 Ultra
NAVEE Birdie 3
NAVEE K100 Max
NAVEE EasyRide 20
NAVEE GT5 Max
NAVEE UT5 Max
NAVEE GT5 Max
NAVEE ST3 PRO
NAVEE GT3 Max
NAVEE GT3 Pro
NAVEE GT3
NAVEE ST3
NAVEE N65i
NAVEE V25i Pro
NAVEE XT5 Max
NAVEE ST5 Max
NAVEE N65i Ⅱ
NAVEE Birdie 3X
NAVEE XT5 Ultra
NAVEE Birdie 3
NAVEE K100 Max
NAVEE EasyRide 20
NAVEE GT5 Max
NAVEE UT5 Max
Max. Power
2200W × 2
2200W
1638W
Battery
46.8V 899Wh
46.8V 899Wh
46.8V 596.7Wh
Max. Range
90km (at 15km/h)
110km (at 15km/h)
90km (at 15km/h)
Max. Climbing Grade
45%
32%
28%
Tires
12-inch off-road tubeless tires
12-inch off-road tubeless tires
10-inch tubeless tires
Suspension
Damping Arm™ suspension system
Damping Arm™ suspension system
Front fork and rear damping cylinder
Brakes
Front disc brakes + rear disc brakes + EABS
Front disc brakes + rear disc brakes + EABS
Front: drum brake; Rear: disc + EABS
Max. Payload
150kg
150kg
130kg
Fast Charging
Yes
Yes
Yes
Weight
38.6kg
35.6kg
24.8kg
NAVEE XT5 Ultra
NAVEE ST3 PRO
NAVEE GT3 Max
NAVEE GT3 Pro
NAVEE GT3
NAVEE ST3
NAVEE N65i
NAVEE V25i Pro
NAVEE XT5 Max
NAVEE ST5 Max
NAVEE N65i Ⅱ
NAVEE Birdie 3X
NAVEE XT5 Ultra
NAVEE Birdie 3
NAVEE K100 Max
NAVEE EasyRide 20
NAVEE GT5 Max
NAVEE UT5 Max
NAVEE XT5 Max
NAVEE ST3 PRO
NAVEE GT3 Max
NAVEE GT3 Pro
NAVEE GT3
NAVEE ST3
NAVEE N65i
NAVEE V25i Pro
NAVEE XT5 Max
NAVEE ST5 Max
NAVEE N65i Ⅱ
NAVEE Birdie 3X
NAVEE XT5 Ultra
NAVEE Birdie 3
NAVEE K100 Max
NAVEE EasyRide 20
NAVEE GT5 Max
NAVEE UT5 Max
NAVEE GT5 Max
NAVEE ST3 PRO
NAVEE GT3 Max
NAVEE GT3 Pro
NAVEE GT3
NAVEE ST3
NAVEE N65i
NAVEE V25i Pro
NAVEE XT5 Max
NAVEE ST5 Max
NAVEE N65i Ⅱ
NAVEE Birdie 3X
NAVEE XT5 Ultra
NAVEE Birdie 3
NAVEE K100 Max
NAVEE EasyRide 20
NAVEE GT5 Max
NAVEE UT5 Max
Max. Power
2200W × 2
2200W
1638W
Battery
46.8V 899Wh
46.8V 899Wh
46.8V 596.7Wh
Max. Range
90km (at 15km/h)
110km (at 15km/h)
90km (at 15km/h)
Max. Climbing Grade
45%
32%
28%
Tires
12-inch off-road tubeless tires
12-inch off-road tubeless tires
10-inch tubeless tires
Suspension
Damping Arm™ suspension system
Damping Arm™ suspension system
Front fork and rear damping cylinder
Brakes
Front disc brakes + rear disc brakes + EABS
Front disc brakes + rear disc brakes + EABS
Front: drum brake; Rear: disc + EABS
Max. Payload
150kg
150kg
130kg
Fast Charging
Yes
Yes
Yes
Weight
38.6kg
35.6kg
24.8kg
